Summary
As part of my introductory SolidWorks class, I was tasked with modeling an object with at least 3 moving parts. I foolishly chose a grigri. A grigri is a belay device used in climbing that includes an automatic stopping feature. It’s basically a safer alternative to a traditional belay device.
Design Process
I quickly found out how difficult it is to model organic parts in SolidWorks. Through hours of struggle I learned several techniques to make it easier to model components and assemblies.
![](https://cdn.myportfolio.com/816166a5-f579-49fc-bbf5-72a163bee8e5/84dc35c7-febc-4e22-937b-cda02421f07b_rw_1200.png?h=5b8b9087dad20b5e5434798e45046a08)

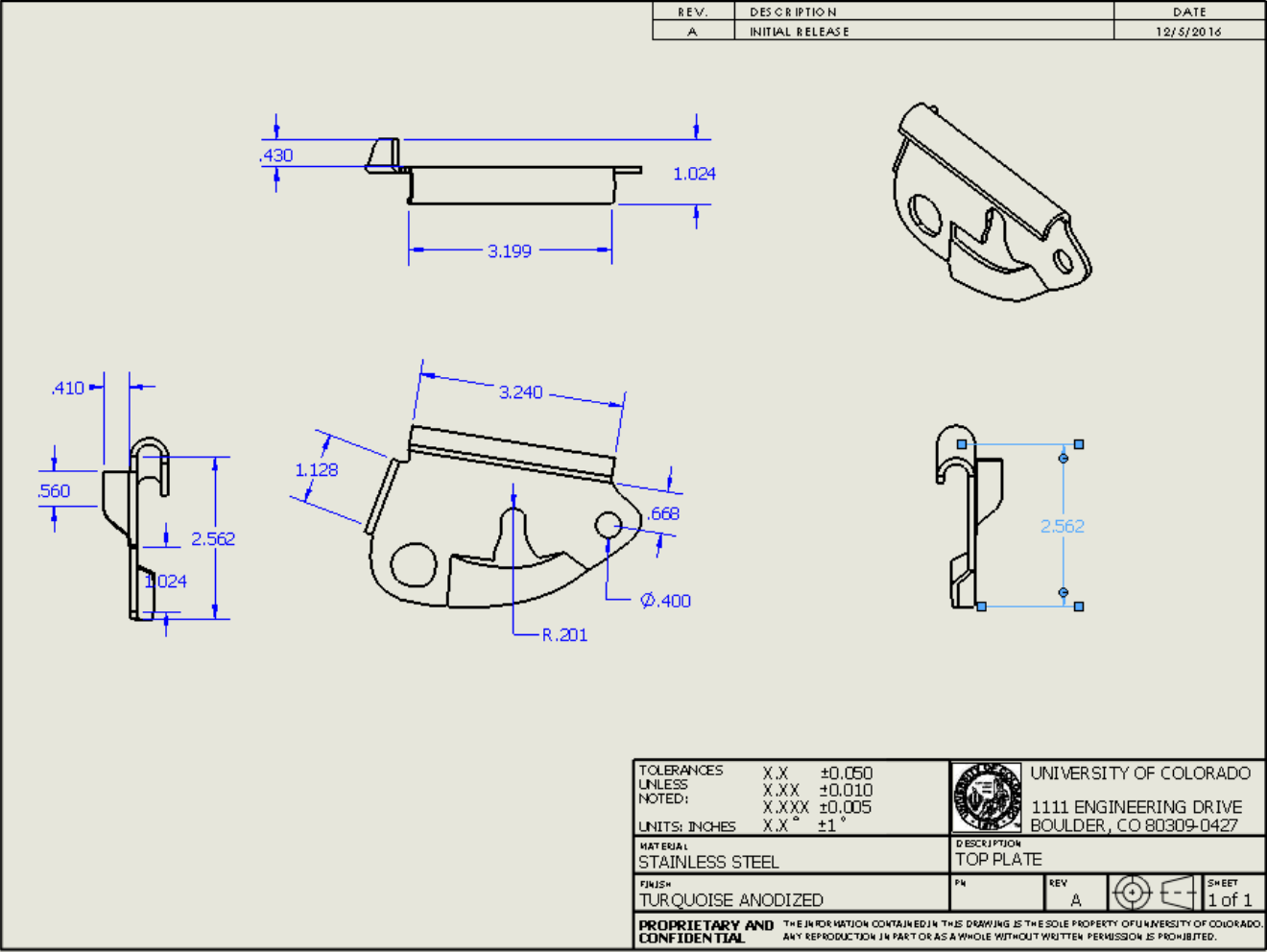

The most difficult part was the top plate which had the most interesting geometry. In fact, I failed to make it an exact replica because of the curved lip section. I opted for a straight lipped version which in practice would work the same but was much easier to model. The project was a great learning experience on how to approach complicated parts and especially how to deal with complex geometry in assemblies.
![](https://cdn.myportfolio.com/816166a5-f579-49fc-bbf5-72a163bee8e5/376e1293-65e8-402c-9a51-658b1f200d83_rw_1200.png?h=e90e81677e85e475cefb0f89f2e297e4)
![](https://cdn.myportfolio.com/816166a5-f579-49fc-bbf5-72a163bee8e5/1f67e4bb-fcdc-480d-8c9f-457202bf9ab5_rw_1920.png?h=59d200770bf5d642f36bec77e149b393)
